Laboratory Jig Mineral Concentrator Separator Water Gold Mining Jigging Machine Diaphragm Jig Machine

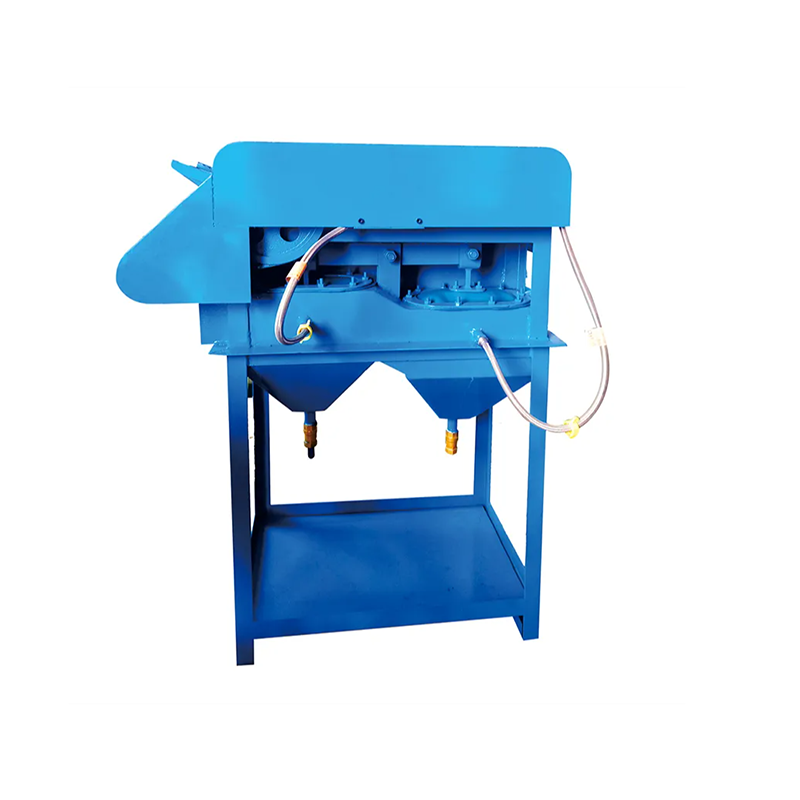

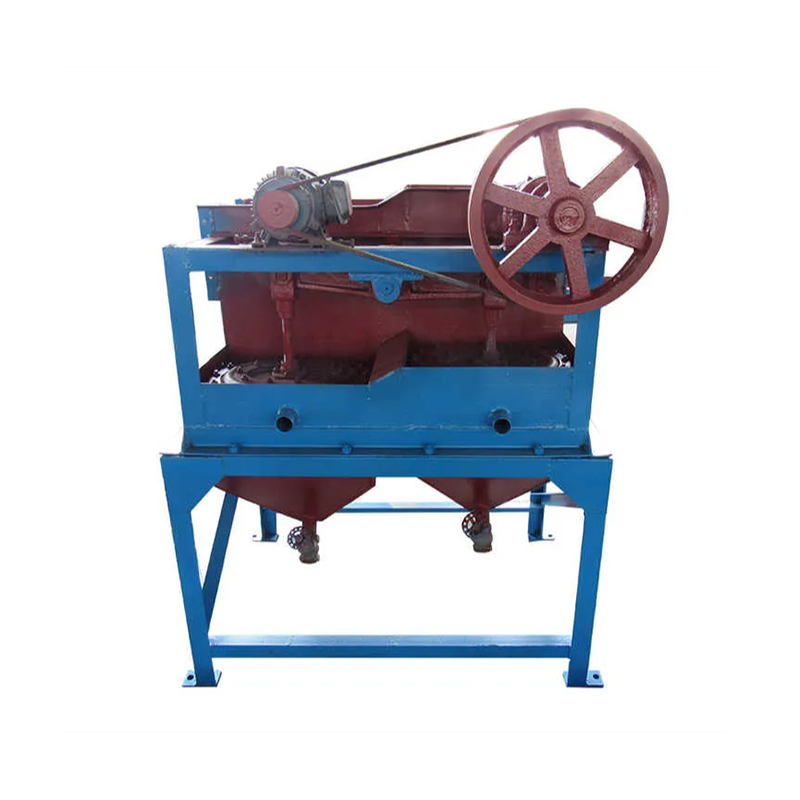

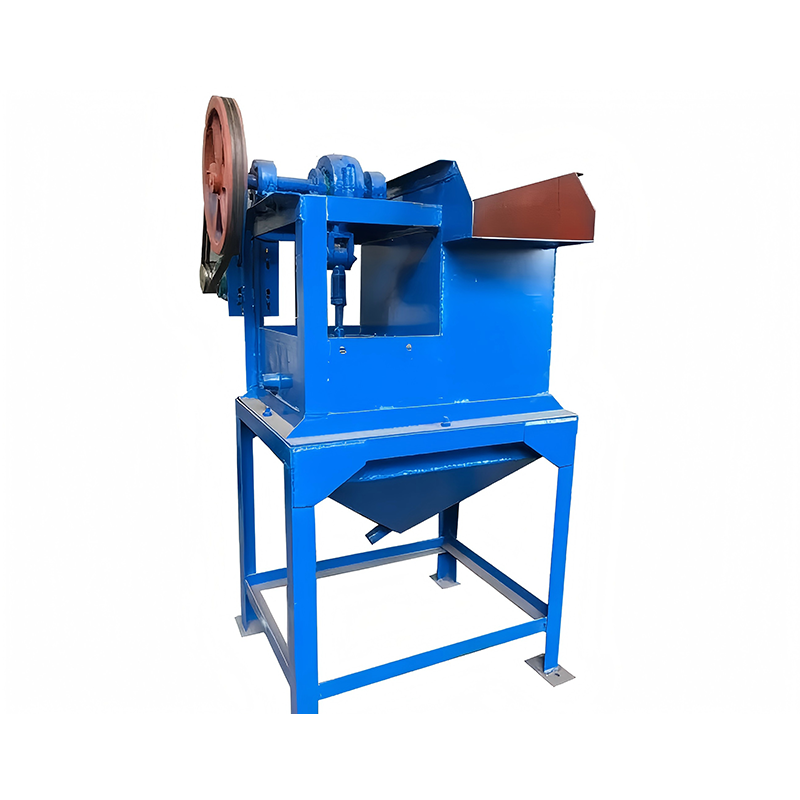

LTP jig is a transmission jig, based on the Denver jig.LTp lig consists of frame, transmission (including diaphragm), chamber and a cone-shaped bottom box, There are two chambers that minerals wouldbe washed one by one. Water low would be driven by the side diaphragm. Diaphragm shapes as oval.lt seals up the water with surounding rubber bandsconnected to the body, Rocker arm with eccentric drive mechanism above the diaphragm drives the diaphragm up and down. There is fluidization waterinlet in one side of the diaphragm Chamber, and fuidization water amount can becontrolled by a valve.
